import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
import matplotlib.pyplot as plt
from dataclasses import dataclass
from typing import List, Tuple, Dict
from tqdm import tqdm
@dataclass
class ModelConfig:
"""Configuration for the neural network model."""
input_dim: int
hidden_layers: List[int]
output_dim: int
activation: nn.Module = nn.Tanh()
device: torch.device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
@dataclass
class TrainingConfig:
"""Configuration for the training process."""
epochs: int = 20000
batch_size: int = 16
initial_lr: float = 0.01
lr_decay_factor: float = 0.1
lr_decay_epochs: int = 4000
lambda_pde_init: float = -4.6 # Initial lambda for PDE residual
lambda_bc_init: float = -4.6 # Initial lambda for boundary conditions
adaptive_lambda: bool = False
adaptive_rate: float = 0.01
class PINN(nn.Module):
"""Physics-Informed Neural Network for solving differential equations."""
def __init__(self, config: ModelConfig):
super().__init__()
self.layers = self._build_layers(config)
self.activation = config.activation
self.device = config.device
def _build_layers(self, config: ModelConfig) -> nn.ModuleList:
"""Construct neural network layers with Xavier initialization."""
layer_sizes = [config.input_dim] + config.hidden_layers + [config.output_dim]
layers = nn.ModuleList()
for i in range(len(layer_sizes) - 1):
layer = nn.Linear(layer_sizes[i], layer_sizes[i + 1])
nn.init.xavier_normal_(layer.weight)
nn.init.zeros_(layer.bias)
layers.append(layer)
return layers
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""Forward pass through the network."""
for i, layer in enumerate(self.layers[:-1]):
x = self.activation(layer(x))
return self.layers[-1](x)
class DiffEqSolver:
"""Solver for differential equations using PINN."""
def __init__(self, model_config: ModelConfig, training_config: TrainingConfig):
self.model = PINN(model_config).to(model_config.device)
self.config = training_config
self.device = model_config.device
self.nu = 0.001 # Diffusion coefficient
def _adaptive_weight(self, lambda_val: float) -> float:
"""Calculate adaptive weight."""
return 100 / (1 + np.exp(-lambda_val))
def _compute_pde_residual(self, x: torch.Tensor, u: torch.Tensor) -> torch.Tensor:
"""Compute the PDE residual."""
du = torch.autograd.grad(u, x, grad_outputs=torch.ones_like(u),
create_graph=True)[0]
d2u = torch.autograd.grad(du, x, grad_outputs=torch.ones_like(du),
create_graph=True)[0]
return self.nu * d2u - u - torch.exp(x)
def _compute_loss(self, x: torch.Tensor, lambda_pde: float, lambda_bc: float) -> Tuple[torch.Tensor, float, float]:
"""Compute total loss with separate weights for PDE and BC."""
u = self.model(x)
pde_residual = self._compute_pde_residual(x, u)
pde_loss = torch.mean(pde_residual**2)
left = torch.tensor([-1.]).reshape(1, 1).to(self.device)
right = torch.tensor([1.]).reshape(1, 1).to(self.device)
bc_loss = torch.mean((self.model(left) - 1)**2 + (self.model(right) - 0)**2)
# Apply separate adaptive weights
w_pde = self._adaptive_weight(lambda_pde)
w_bc = self._adaptive_weight(lambda_bc)
total_loss = w_pde * pde_loss + w_bc * bc_loss
return total_loss, pde_loss.item(), bc_loss.item()
def train(self, desc: str = "Training") -> Tuple[List[float], List[float], List[float], List[float], List[float]]:
"""Train the model and return loss history."""
optimizer = optim.Adam(self.model.parameters(), lr=self.config.initial_lr)
lambda_pde = self.config.lambda_pde_init
lambda_bc = self.config.lambda_bc_init
total_losses = []
pde_losses = []
bc_losses = []
lambda_pde_values = []
lambda_bc_values = []
pbar = tqdm(range(1, self.config.epochs + 1), desc=desc)
for epoch in pbar:
x = (2 * torch.rand(self.config.batch_size, 1) - 1).to(self.device)
x.requires_grad_(True)
optimizer.zero_grad()
loss, pde_loss, bc_loss = self._compute_loss(x, lambda_pde, lambda_bc)
loss.backward()
optimizer.step()
if self.config.adaptive_lambda:
# Update both lambda values based on their respective losses
lambda_pde += (self.config.adaptive_rate * pde_loss * 100 *
np.exp(-lambda_pde) / (1 + np.exp(-lambda_pde))**2)
lambda_bc += (self.config.adaptive_rate * bc_loss * 100 *
np.exp(-lambda_bc) / (1 + np.exp(-lambda_bc))**2)
pbar.set_description(f'{desc} (λ_pde={lambda_pde:.2f}, λ_bc={lambda_bc:.2f})')
if epoch % self.config.lr_decay_epochs == 0:
for param_group in optimizer.param_groups:
param_group['lr'] *= self.config.lr_decay_factor
pbar.set_description(f'{desc} LR: {param_group["lr"]:.2e}')
if epoch % 100 == 0:
total_losses.append(loss.item())
pde_losses.append(pde_loss)
bc_losses.append(bc_loss)
lambda_pde_values.append(lambda_pde)
lambda_bc_values.append(lambda_bc)
pbar.set_postfix({
'total_loss': f'{loss.item():.6e}',
'pde_loss': f'{pde_loss:.6e}',
'bc_loss': f'{bc_loss:.6e}'
})
return total_losses, pde_losses, bc_losses, lambda_pde_values, lambda_bc_values
def plot_detailed_losses(losses: Tuple[List[float], List[float], List[float], List[float], List[float]]):
"""Plot detailed loss components and lambda evolution."""
total_losses, pde_losses, bc_losses, lambda_pde_values, lambda_bc_values = losses
total_losses = np.array(pde_losses) + np.array(bc_losses)
epochs = range(100, len(total_losses) * 100 + 1, 100)
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(12, 10))
# Plot losses
ax1.semilogy(epochs, total_losses, 'k-', label='Total Loss', linewidth=2)
ax1.semilogy(epochs, pde_losses, 'r--', label='PDE Residual Loss', linewidth=2)
ax1.semilogy(epochs, bc_losses, 'b--', label='BC Loss', linewidth=2)
ax1.set_xlabel('Iteration')
ax1.set_ylabel('Loss (log scale)')
ax1.set_title('Loss Components Evolution')
ax1.grid(True)
ax1.legend()
# Plot lambda evolution
ax2.plot(epochs, lambda_pde_values, 'r-', label='λ_PDE', linewidth=2)
ax2.plot(epochs, lambda_bc_values, 'b-', label='λ_BC', linewidth=2)
ax2.set_xlabel('Iteration')
ax2.set_ylabel('λ value')
ax2.set_title('Adaptive λ Evolution')
ax2.grid(True)
ax2.legend()
plt.tight_layout()
return fig
def exact_solution(x: np.ndarray) -> np.ndarray:
"""Compute the exact solution of the differential equation."""
c1 = ((1 + 1000/np.exp(1)/999)*np.exp((-10*np.sqrt(10))) -
np.exp(10*np.sqrt(10))*1000*np.exp(1)/999) / (np.exp(-20*np.sqrt(10)) -
np.exp(20*np.sqrt(10)))
c2 = (np.exp(-10*np.sqrt(10))*1000*np.exp(1)/999 -
np.exp(10*np.sqrt(10)) * (1+1000/np.exp(1)/999)) / (np.exp(-20*np.sqrt(10)) -
np.exp(20*np.sqrt(10)))
return (c1*np.exp(10*np.sqrt(10)*x) + c2*np.exp(-10*np.sqrt(10)*x) -
(1000/999)*np.exp(x))

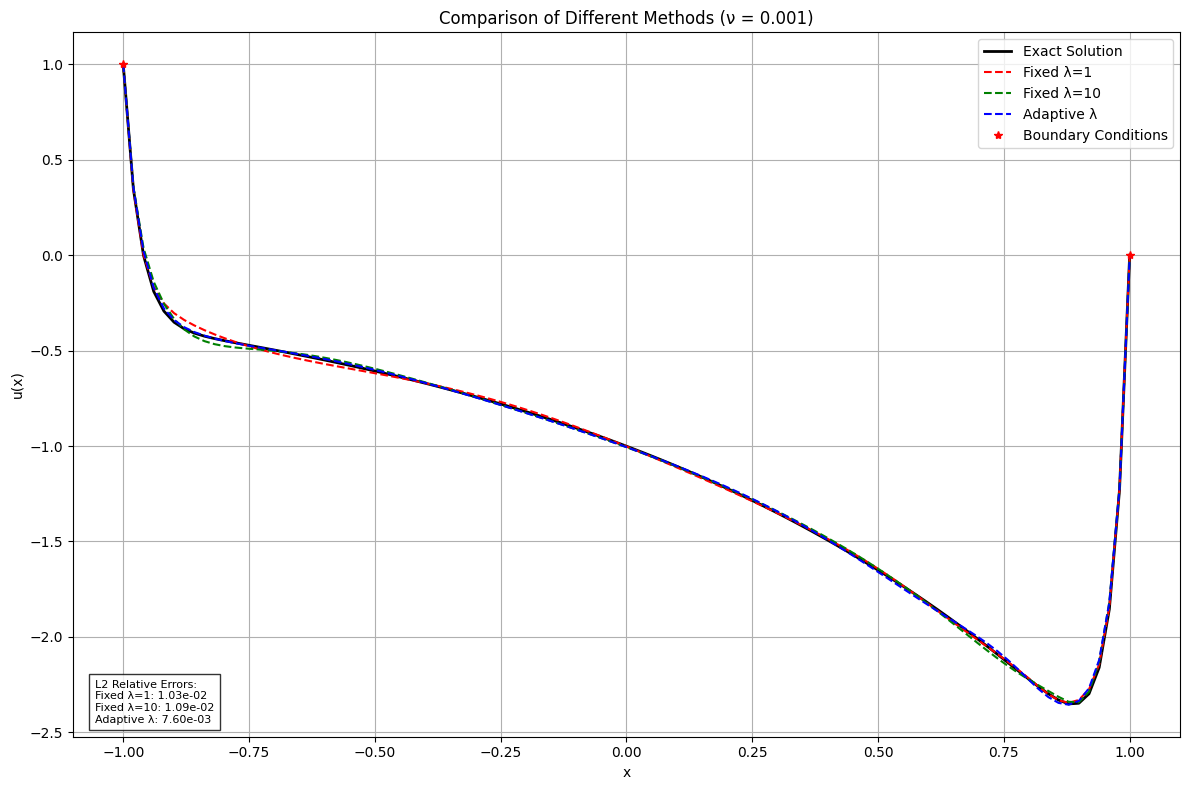

def plot_comparison(solvers: Dict[str, DiffEqSolver], x_plot: np.ndarray,
y_exact: np.ndarray) -> Dict[str, float]:
"""Plot comparison of different methods and return their errors."""
plt.figure(figsize=(12, 8))
plt.plot(x_plot, y_exact, 'k-', label='Exact Solution', linewidth=2)
colors = ['r--', 'g--', 'b--']
errors = {}
for (name, solver), color in zip(solvers.items(), colors):
x_tensor = torch.tensor(x_plot.reshape(-1, 1), dtype=torch.float32).to(solver.device)
with torch.no_grad():
y_pred = solver.model(x_tensor).cpu().numpy()
errors[name] = np.linalg.norm(y_exact - y_pred.flatten()) / np.linalg.norm(y_exact)
plt.plot(x_plot, y_pred, color, label=name, linewidth=1.5)
plt.plot([-1, 1], [1, 0], 'r*', label='Boundary Conditions')
plt.xlabel('x')
plt.ylabel('u(x)')
plt.title('Comparison of Different Methods (ν = 0.001)')
plt.grid(True)
plt.legend()
# Add error text box
error_text = '\n'.join([f'{name}: {error:.2e}' for name, error in errors.items()])
plt.text(0.02, 0.02, f'L2 Relative Errors:\n{error_text}',
transform=plt.gca().transAxes,
bbox=dict(facecolor='white', alpha=0.8),
fontsize=8)
plt.tight_layout()
return errors

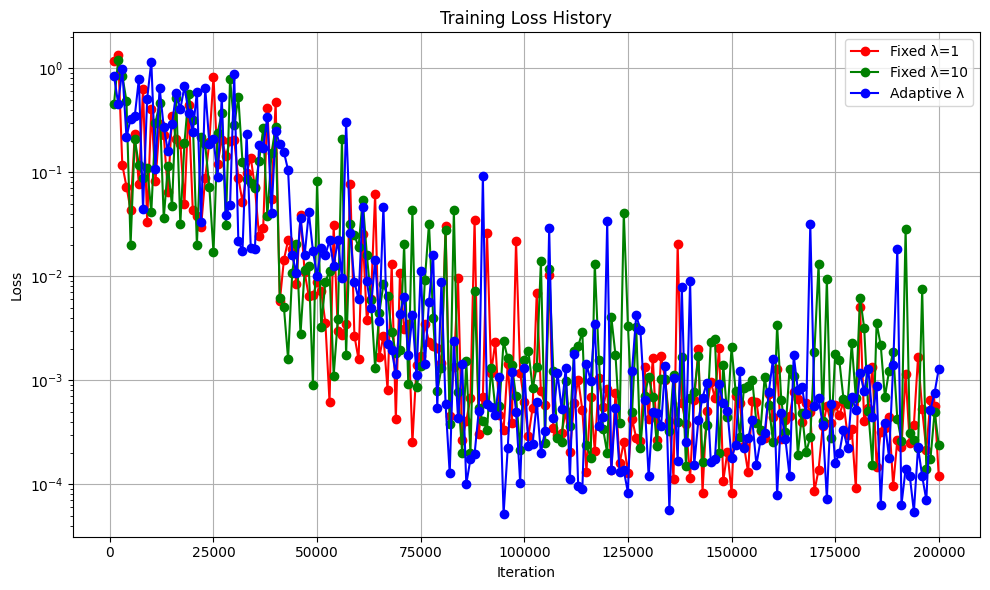

def plot_losses(all_losses: Dict[str, List[float]]):
"""Plot training loss history for all methods."""
plt.figure(figsize=(10, 6))
colors = ['r-o', 'g-o', 'b-o']
for (name, losses), color in zip(all_losses.items(), colors):
plt.semilogy(range(1000, len(losses) * 1000 + 1, 1000),
losses, color, label=name)
plt.xlabel('Iteration')
plt.ylabel('Loss')
plt.title('Training Loss History')
plt.grid(True)
plt.legend()
plt.tight_layout()
def main():
# Set random seeds
torch.manual_seed(42)
np.random.seed(42)
# Base configurations
model_config = ModelConfig(
input_dim=1,
hidden_layers=[16, 16, 16],
output_dim=1
)
# Create solvers with different lambda strategies
solvers = {}
training_configs = {
'Fixed λ=1': TrainingConfig(lambda_pde_init=-4.6, lambda_bc_init=-4.6, adaptive_lambda=False),
'Fixed λ=10': TrainingConfig(lambda_pde_init=-2.2, lambda_bc_init=-2.2, adaptive_lambda=False),
'Adaptive λ': TrainingConfig(lambda_pde_init=-4.6, lambda_bc_init=-4.6, adaptive_lambda=True),
}
# Train all models
all_losses = {}
adaptive_losses = None
for name, config in training_configs.items():
solver = DiffEqSolver(model_config, config)
losses, pde_losses, bc_losses, lambda_pde_values, lambda_bc_values = solver.train(desc=f'Training {name}')
if name == 'Adaptive λ':
adaptive_losses = (losses, pde_losses, bc_losses, lambda_pde_values, lambda_bc_values)
solvers[name] = solver
all_losses[name] = np.array(pde_losses) + np.array(bc_losses) #losses
# Plot detailed losses
plot_detailed_losses(adaptive_losses)
plt.show()
# Generate comparison data
x_plot = np.linspace(-1, 1, 100)
y_exact = exact_solution(x_plot)
# Plot comparisons
errors = plot_comparison(solvers, x_plot, y_exact)
plt.show()
# Plot loss histories
plot_losses(all_losses)
plt.show()
# Print final errors
print('\nFinal L2 relative errors:')
for name, error in errors.items():
print(f'{name}: {error:.6e}')
if __name__ == "__main__":
main()
